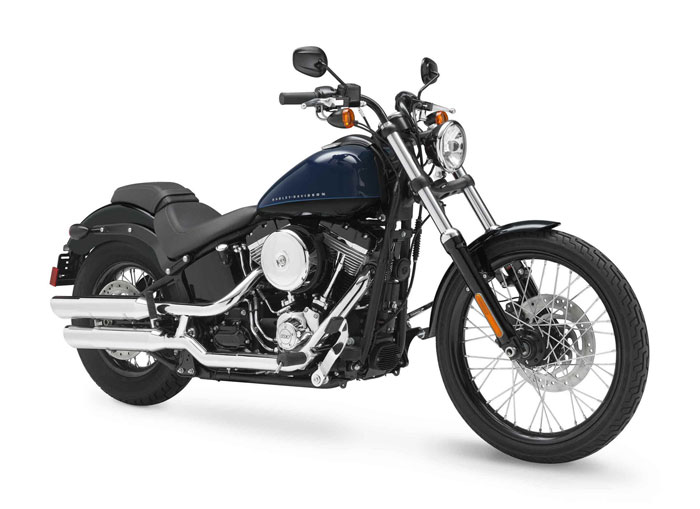

Harley-Davidson FXS Softail Blackline, 2012
USA Specifications/Technical Details
The Dimensions
Length 93 in. (2362 mm)
Overall Width 34 in. (864 mm)
Overall Height 47.3 in. (1201 mm)
Length 93 in. (2362 mm)
Overall Width 34 in. (864 mm)
Overall Height 47.3 in. (1201 mm)
Seat Height:
- Laden2 24 in. (610 mm)
- Unladen 26.1 in. (663 mm)
Ground Clearance 5.25 in. (133 mm)
Rake (steering head) 30°
Fork Angle 33.5°
Trail 4.84 in. (123 mm)
Wheelbase 66.5 in. (1689 mm)
Tires (Dunlop® Harley-Davidson® Series, blackwall):
- Front – D402F MH90-21 54H
- Rear – D402 MU85B16 77H
Fuel Capacity 5.0 gal. (18.9 L) (warning light at approximately 1.0 gal.)
Oil Capacity (w/filter) 3.5 qts. (3.3 L)
Transmission Capacity 1.0 qt. (.95 L)
Primary Chain
Case Capacity 1.0 qt. (.95 L)
Weight:
- As Shipped 638.5 lbs. (290 kg)
- In Running Order 682.5 lbs. (310 kg)
- Gross Vehicle Weight Rating 1124 lbs. (510 kg)
- Gross Axle Weight Rating:
- Front 414 lbs. (188 kg)
- Rear 710 lbs. (322 kg)
The Engine
Engine Air-cooled, Twin Cam 103BTM
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.875 in. x 4.38 in. (98.4 mm x 111.1 mm)
Displacement 103 cu. in. (1690 cc)
Compression Ratio 9.6:1
Fuel System3 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Paper, washable
Lubrication System Pressurized, dry-sump
The Drivetrain
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/66 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
Gear Ratios (overall): U.S.
- 1st 9.311
- 2nd 6.454
- 3rd 4.793
- 4th 3.882
- 5th 3.307
- 6th 2.79
The Chassis
Frame Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Swingarm Mild steel, round tube sections, forged junctions; MIG welded
Front Forks 41.3 mm telescopic
Rear Shocks Hidden, horizontal-mounted, coil-over
Wheels4: Black Anodized Aluminum Profile Laced
- Front 21 in. x 2.15 in. (533 mm x 55 mm)
- Rear 16 in. x 3 in. (406 mm x 76 mm)
Brakes:
- Caliper Type 4-piston front and 2-piston rear
- Rotor Type (diameter x width): Patented, uniform expansion rotors
- Front 11.5 in. x .2 in. (292 mm x 5.1 mm)
- Rear 11.5 in. x .23 in. (292mm x 5.8 mm)
- Anti-lock Braking System: Available
Suspension Travel:
- Front Wheel 5.6 in. (143 mm)
- Rear Wheel 3.6 in. (91 mm)
The Performance
Engine Torque5 (per J1349):
- North America 98.7 ft. lbs. @ 3250 RPM (134 Nm @ 3250 RPM)
Lean Angle (per J1168):
- Right 24.4°
- Left 25.9°
Fuel Economy6 (EPA urban/highway test) 42 mpg (5.6 L/100 km)
COLOR OPTIONS
Solids
- Vivid Black
- Black Denim
Two-Tones
- Big Blue Pearl/Vivid Black
- H-D Orange/Vivid Black
U.S. MSRP
Vivid Black $15,499
Color $15,884
Two-Tone $15,999
The Electric
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca
Charging Three-phase, 38-amp system (439W @ 13V, 2000 RPM, 489W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
The Lights (as per country regulation):
- Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
- Turn Signal Lights 28W (21W) self-canceling
- Rear Tail/Stop/Turn Signal Lights 8W/28W (5W/21W) self-canceling
- Indicator Lamps: High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system7 (optional), 6-speed, low
fuel warnings
Warranty
Warranty8 24 months (unlimited mileage)
Service Interval9 First 1000 miles (1600 km), every 5000 miles (8000 km) thereafter
1. Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication.
- Laden2 24 in. (610 mm)
- Unladen 26.1 in. (663 mm)
Ground Clearance 5.25 in. (133 mm)
Rake (steering head) 30°
Fork Angle 33.5°
Trail 4.84 in. (123 mm)
Wheelbase 66.5 in. (1689 mm)
Tires (Dunlop® Harley-Davidson® Series, blackwall):
- Front – D402F MH90-21 54H
- Rear – D402 MU85B16 77H
Fuel Capacity 5.0 gal. (18.9 L) (warning light at approximately 1.0 gal.)
Oil Capacity (w/filter) 3.5 qts. (3.3 L)
Transmission Capacity 1.0 qt. (.95 L)
Primary Chain
Case Capacity 1.0 qt. (.95 L)
Weight:
- As Shipped 638.5 lbs. (290 kg)
- In Running Order 682.5 lbs. (310 kg)
- Gross Vehicle Weight Rating 1124 lbs. (510 kg)
- Gross Axle Weight Rating:
- Front 414 lbs. (188 kg)
- Rear 710 lbs. (322 kg)
The Engine
Engine Air-cooled, Twin Cam 103BTM
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.875 in. x 4.38 in. (98.4 mm x 111.1 mm)
Displacement 103 cu. in. (1690 cc)
Compression Ratio 9.6:1
Fuel System3 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Paper, washable
Lubrication System Pressurized, dry-sump
The Drivetrain
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/66 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
Gear Ratios (overall): U.S.
- 1st 9.311
- 2nd 6.454
- 3rd 4.793
- 4th 3.882
- 5th 3.307
- 6th 2.79
The Chassis
Frame Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Swingarm Mild steel, round tube sections, forged junctions; MIG welded
Front Forks 41.3 mm telescopic
Rear Shocks Hidden, horizontal-mounted, coil-over
Wheels4: Black Anodized Aluminum Profile Laced
- Front 21 in. x 2.15 in. (533 mm x 55 mm)
- Rear 16 in. x 3 in. (406 mm x 76 mm)
Brakes:
- Caliper Type 4-piston front and 2-piston rear
- Rotor Type (diameter x width): Patented, uniform expansion rotors
- Front 11.5 in. x .2 in. (292 mm x 5.1 mm)
- Rear 11.5 in. x .23 in. (292mm x 5.8 mm)
- Anti-lock Braking System: Available
Suspension Travel:
- Front Wheel 5.6 in. (143 mm)
- Rear Wheel 3.6 in. (91 mm)
The Performance
Engine Torque5 (per J1349):
- North America 98.7 ft. lbs. @ 3250 RPM (134 Nm @ 3250 RPM)
Lean Angle (per J1168):
- Right 24.4°
- Left 25.9°
Fuel Economy6 (EPA urban/highway test) 42 mpg (5.6 L/100 km)
COLOR OPTIONS
Solids
- Vivid Black
- Black Denim
Two-Tones
- Big Blue Pearl/Vivid Black
- H-D Orange/Vivid Black
U.S. MSRP
Vivid Black $15,499
Color $15,884
Two-Tone $15,999
The Electric
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca
Charging Three-phase, 38-amp system (439W @ 13V, 2000 RPM, 489W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
The Lights (as per country regulation):
- Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
- Turn Signal Lights 28W (21W) self-canceling
- Rear Tail/Stop/Turn Signal Lights 8W/28W (5W/21W) self-canceling
- Indicator Lamps: High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system7 (optional), 6-speed, low
fuel warnings
Warranty
Warranty8 24 months (unlimited mileage)
Service Interval9 First 1000 miles (1600 km), every 5000 miles (8000 km) thereafter
1. Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication.
Though such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (V-Rod® models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2. Measurement reflects 180 lb. (81.7 kg) operator weight.
3. Recommended 91 octane or higher fuel (R+M)/2.
4. Standard and optional wheels may vary by country and region.
5. Values shown are nominal. Performance may vary by country and region.
6. The combined fuel economy numbers were derived using a combination of estimated city and highway values. Fuel economy estimates are derived from US EPA exhaust emission certification data on a sample motorcycle from the corresponding family under ideal laboratory conditions. Your actual fuel economy will vary depending on your personal riding habits, road and driving conditions, vehicle condition and maintenance, tire pressure, vehicle configuration (parts and accessories), and vehicle loading (cargo, rider and passenger weight). Break-in mileage may vary.
7. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8. See motorcycle owner’s manual for complete details.
9. Inspections of certain systems and components are required at 2500 mile (4000 km) intervals. See Owner’s Manual for full details.
2. Measurement reflects 180 lb. (81.7 kg) operator weight.
3. Recommended 91 octane or higher fuel (R+M)/2.
4. Standard and optional wheels may vary by country and region.
5. Values shown are nominal. Performance may vary by country and region.
6. The combined fuel economy numbers were derived using a combination of estimated city and highway values. Fuel economy estimates are derived from US EPA exhaust emission certification data on a sample motorcycle from the corresponding family under ideal laboratory conditions. Your actual fuel economy will vary depending on your personal riding habits, road and driving conditions, vehicle condition and maintenance, tire pressure, vehicle configuration (parts and accessories), and vehicle loading (cargo, rider and passenger weight). Break-in mileage may vary.
7. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8. See motorcycle owner’s manual for complete details.
9. Inspections of certain systems and components are required at 2500 mile (4000 km) intervals. See Owner’s Manual for full details.
