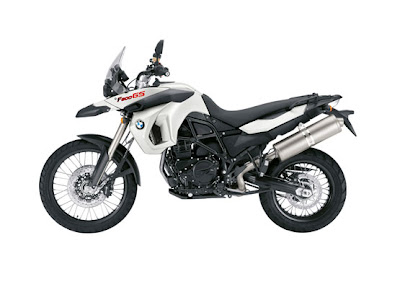

BMW F800GS, 2010


BMW F800GS, 2010
 USA MSRP: $11,395 USD

United States Specifications
Engine


Type Water-cooled, 2-cylinder, 4-stroke, four valves per cylinder, two overhead camshafts, dry sump lubrication

Bore x stroke 82 mm x 75.6 mm
Capacity 798 cc
Rated output 85hp (63 kW) at 7,500 rpm
Max. torque 62 lb/ft (83 Nm) at 5,750 rpm
Compression ratio 12.0 : 1

Mixture control / engine management Electronic intake pipe injection / digital engine management (BMS-K)
Emission control Closed-loop 3-way catalytic converter, emission standard EU-3

Performance / fuel consumption
Maximum speed Over 125 mph [200 km/h]
Fuel consumption per 100 km at constant 90 km/h 3.8 l
Fuel consumption per 100 km at constant 120 km/h 5.2 l
Fuel type Unleaded Premium

Electrical system
Alternator three-phase alternator 400 W
Battery 12 V / 14 Ah, maintenance-free

Power transmission
Clutch Multiple-disc clutch in oil bath, mechanically operated
Gearbox Constant mesh 6-speed gearbox integrated into crankcase
Drive Endless O-ring chain with shock damping in rear wheel hub

Chassis / brakes
Frame Tubular steel space frame, load-bearing engine
Front wheel location / suspension Upside-down front fork, Ø 45 mm

Rear wheel location / suspension Cast aluminium dual swing arm, WAD strut (travel related damping), spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable

Suspension travel front / rear 9.0 inches (230 mm) / 8.5 inches (215 mm)
Wheelbase 62.1 inches (1578 mm)
Castor 4.6 inches (117 mm)
Steering head angle 64°
Wheels Wire spoke
Rim, front 2.15 x 21"
Rim, rear 4.25 x 17"
Tyres, front 90/90 - 21
Tyres, rear 150/70 - 17
Brake, front Twin disc, floating brake discs, diameter 300 mm, double-piston floating calipers
Brake, rear Single disc, diameter 265 mm, single-piston floating caliper
ABS Optional extra: BMW Motorrad ABS (can be switched off)
