HD-Harley Davidson XL 883C Sportster 833 Custom (2009) Pictures, Review and Specifications.
- Those seeking a laid-back, two-up custom ride in an easy to handle package need look no further than the 883 Custom. With a new suspension and lighter rear wheel, a 17 litre fuel tank, two-up seat, and low-rise handlebars, the 883 Custom rolls down the road with true style, comfort and authentic American V-Twin performance -
- Those seeking a laid-back, two-up custom ride in an easy to handle package need look no further than the 883 Custom. With a new suspension and lighter rear wheel, a 17 litre fuel tank, two-up seat, and low-rise handlebars, the 883 Custom rolls down the road with true style, comfort and authentic American V-Twin performance -

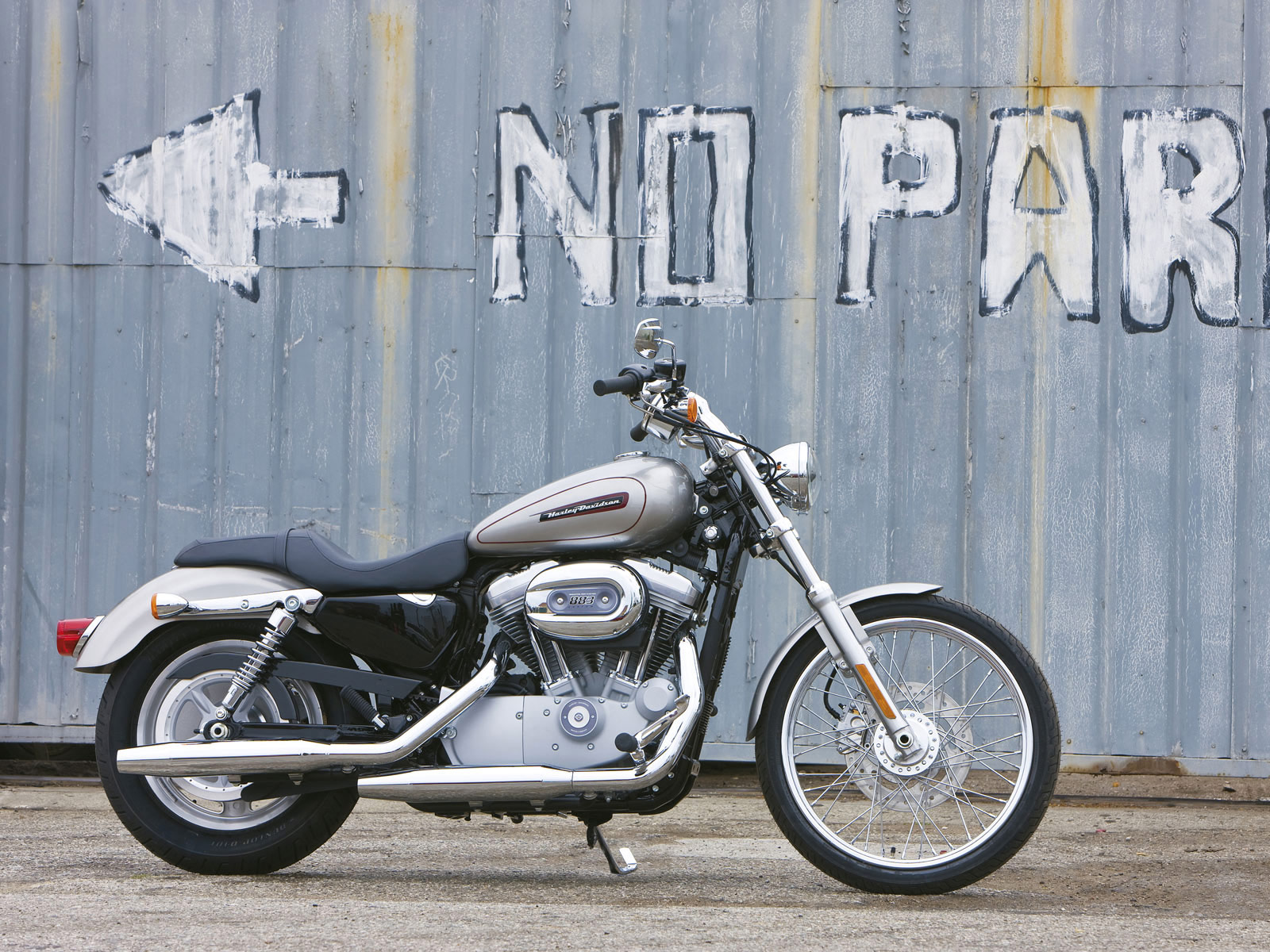

Harley Davidson XL 883C Sportster 833 Custom (2009)
Click Thumbnail to download (size 1600 x 1200 pixels)
General information
Model: Harley-Davidson XL 883C Sportster 883 Custom
Year: 2009
Category: Custom / cruiser
Rating: 67 out of 100. Show full rating and compare with other bikes
Safety: See our safety campaign with the high safety rated bikes in this category.
Engine and transmission
Displacement: 883.00 ccm (53.88 cubic inches)
Engine type: V2
Stroke: 4
Torque: 70.00 Nm (7.1 kgf-m or 51.6 ft.lbs) @ 3750 RPM
Bore x stroke: 76.2 x 96.8 mm (3.0 x 3.8 inches)
Fuel system: Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Starter: Electric
Cooling system: Air
Gearbox: 5-speed
Transmission type final drive: Belt
Physical measures
Dry weight: 255.0 kg (562.2 pounds)
Seat height: 673 mm (26.5 inches) If adjustable, lowest setting.
Overall length: 2,275 mm (89.6 inches)
Ground clearance: 112 mm (4.4 inches)
Wheelbase: 1,520 mm (59.8 inches)
Chassis and dimensions
Frame type: Mild steel tubular frame; circular sections; cast junctions
Rake (fork angle): 30.0°
Trail: 119 mm (4.7 inches)
Front tyre dimensions: MH90-21
Rear tyre dimensions: 150/80-16
Front brakes: Single disc. Dual piston calipers
Front brakes diameter: 292 mm (11.5 inches)
Rear brakes: Single disc. Single piston
Rear brakes diameter: 292 mm (11.5 inches)
Exhaust system: Chrome, staggered shorty exhaust with dual mufflers
Other specifications
Fuel capacity: 17.00 litres (4.49 gallons)
Color options: Vivid Black, Pewter Pearl, Flame Blue Pearl, Red Hot Sunglo, White Gold Pearl and Pewter Pearl; Red Hot Sunglo and Smokey Gold
Modifications compared to previous model: New low profile rear shocks for improved ride quality; New low-profile front fender.
Comments:
Silver powder-coated engine; Chrome, bullet headlamp; Chrome, tall pull-back riser; Forward-mounted rider footpegs; Standard passenger footpegs; Stainless steel, low-rise handlebars; One-piece, two-up Sportster® classic seat.
Year: 2009
Category: Custom / cruiser
Rating: 67 out of 100. Show full rating and compare with other bikes
Safety: See our safety campaign with the high safety rated bikes in this category.
Engine and transmission
Displacement: 883.00 ccm (53.88 cubic inches)
Engine type: V2
Stroke: 4
Torque: 70.00 Nm (7.1 kgf-m or 51.6 ft.lbs) @ 3750 RPM
Bore x stroke: 76.2 x 96.8 mm (3.0 x 3.8 inches)
Fuel system: Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Starter: Electric
Cooling system: Air
Gearbox: 5-speed
Transmission type final drive: Belt
Physical measures
Dry weight: 255.0 kg (562.2 pounds)
Seat height: 673 mm (26.5 inches) If adjustable, lowest setting.
Overall length: 2,275 mm (89.6 inches)
Ground clearance: 112 mm (4.4 inches)
Wheelbase: 1,520 mm (59.8 inches)
Chassis and dimensions
Frame type: Mild steel tubular frame; circular sections; cast junctions
Rake (fork angle): 30.0°
Trail: 119 mm (4.7 inches)
Front tyre dimensions: MH90-21
Rear tyre dimensions: 150/80-16
Front brakes: Single disc. Dual piston calipers
Front brakes diameter: 292 mm (11.5 inches)
Rear brakes: Single disc. Single piston
Rear brakes diameter: 292 mm (11.5 inches)
Exhaust system: Chrome, staggered shorty exhaust with dual mufflers
Other specifications
Fuel capacity: 17.00 litres (4.49 gallons)
Color options: Vivid Black, Pewter Pearl, Flame Blue Pearl, Red Hot Sunglo, White Gold Pearl and Pewter Pearl; Red Hot Sunglo and Smokey Gold
Modifications compared to previous model: New low profile rear shocks for improved ride quality; New low-profile front fender.
Comments:
Silver powder-coated engine; Chrome, bullet headlamp; Chrome, tall pull-back riser; Forward-mounted rider footpegs; Standard passenger footpegs; Stainless steel, low-rise handlebars; One-piece, two-up Sportster® classic seat.
